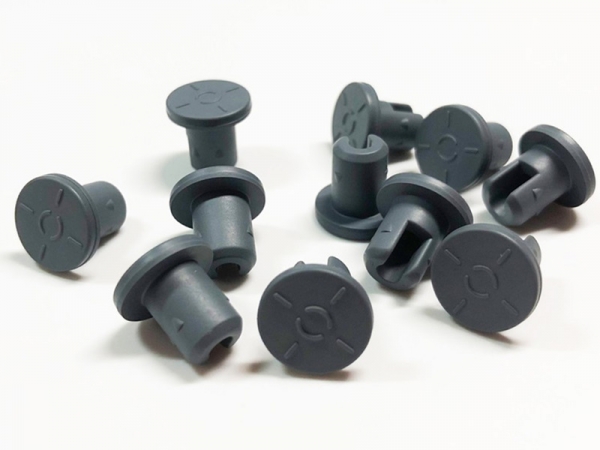

Freeze-drying Rubber Stopper
Functions：For encapsulation of freeze-dried Injection Vials
Material :Bromobutyl/ Chlorobutyl Rubber
Packing details：Inner packing is PE bag or tyvek sterilzable bag,according to customer's requests.Outer packing is two corrugated export carton.
Standard：CP,EP,USP,JP,ISO15378
Remark： accept custom(size,color)
Regular dimensions in MM.:
| Item |
Specification |
Feature |
Main specifications.(mm) |
|||
|
Head Diameter |
Plug Diameter |
Height |
Head Thickness |
|||
|
1 |
13-D1 |
Two arcs,Four lines
|
12.4±0.2 |
7.5±0.1 |
12.0±0.2 |
2.0±0.2 |
|
2 |
13-D1-2 |
Two arcs,Four lines
|
12.5±0.2 |
7.5±0.1 |
12.0±0.2 |
2.0±0.2 |
|
3 |
13-D2 |
Two arcs |
12.4±0.2 |
7.5±0.1 |
9.7±0.2 |
2.0±0.2 |
|
4 |
13-D2-2 |
One circle,three points
|
12.6±0.2 |
7.7±0.1 |
11.1±0.2 |
2.0±0.2 |
|
5 |
20-D1 |
Two arcs,Four lines
|
18.8±0.2 |
13.2±0.1 |
13.8±0.3 |
3.3±0.2 |
|
6 |
Double circle |
18.8±0.2 |
13.2±0.1 |
13.8±0.3 |
3.3±0.2 |
|
|
7 |
20-D3 |
Two arcs |
18.8±0.2 |
13.2±0.1 |
13.8±0.3 |
3.3±0.2 |
|
8 |
20-D4 |
One circle,Four rays
|
18.8±0.2 |
13.4±0.1 |
14.6±0.3 |
3.3±0.2 |
