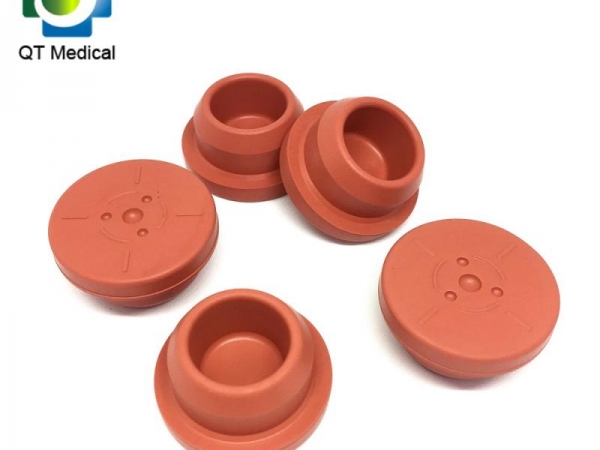

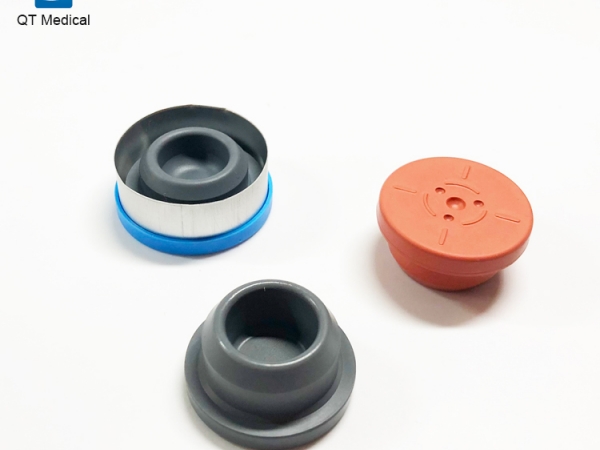

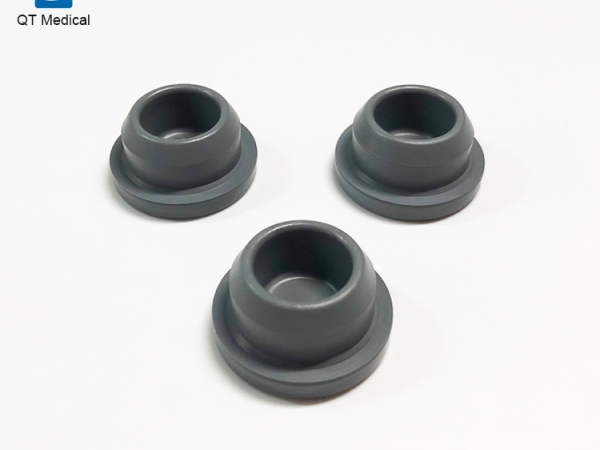

Infusion Rubber Stopper
Functions： suitable for the sealing of injection liquid
Material :Bromobutyl/ Chlorobutyl Rubber
Packing details：Inner packing is PE bag or tyvek sterilzable bag,according to customer's requests.Outer packing is two corrugated export carton.
Standard：CP,EP,USP,JP,ISO15378
Remark： accept custom(size,color)
Regular dimensions in MM.:
| Item |
Specification |
Feature |
Main specifications.(mm) |
|||
|
Head Diameter |
Plug Diameter |
Height |
Head Thickness |
|||
|
1 |
24mm |
Three arcs ,two needled holes |
23.9±0.3 |
13.9±0.2 |
10.2±0.4 |
3.8±0.25 |
|
2 |
26mm |
Three arcs ,two needled holes |
25.5±0.3 |
15.5±0.2 |
10.0±0.4 |
3.8±0.25 |
|
3 |
28mm |
Three arcs,Three puncture wholes
|
26.6±0.2 |
18.0±0.2 |
11.8±0.3 |
3.8±0.25 |
|
4 |
32mm-1 |
Four needled holes,three arcs,four rays |
30.8±0.3 |
23.6±0.2 |
12.2±0.4 |
4.0±0.25 |
|
5 |
32mm-2 |
Four needled holes,three arcs,four rays |
30.8±0.3 |
24.0±0.2 |
16.0±0.4 |
5.0±0.25 |
